Delabie TEMPOFIX 3 frame system for urinals Time flow flush valve, 1/2

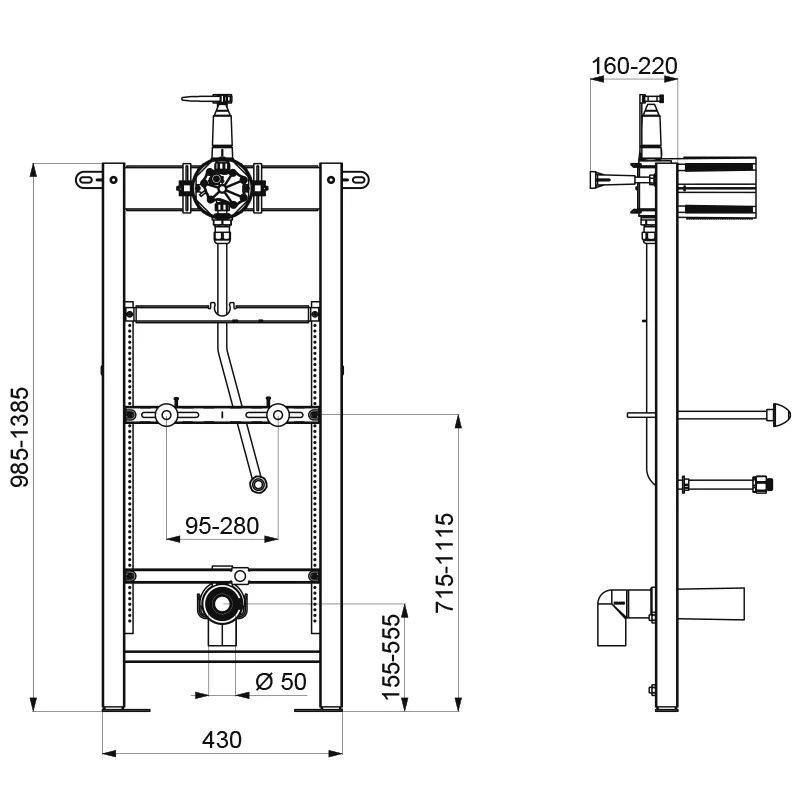

Frame system W. 430mm for urinals:

Black powder-coated steel frame for wall mounted installation.
Fixes to floor and load-bearing walls, anchoring bolts supplied.
Adjustable bracket 100 - 280mm.
Frame height can be adjusted 0 - 200mm.
Ø 50mm soil pipe with waterproof seal.
Delivered pre-mounted.
Complies with standard French standard NF D12-208.
Compatible with solid wall finishes from 13 - 120mm.

Fitted with a TEMPOFLUX F½" time flow flush valve:

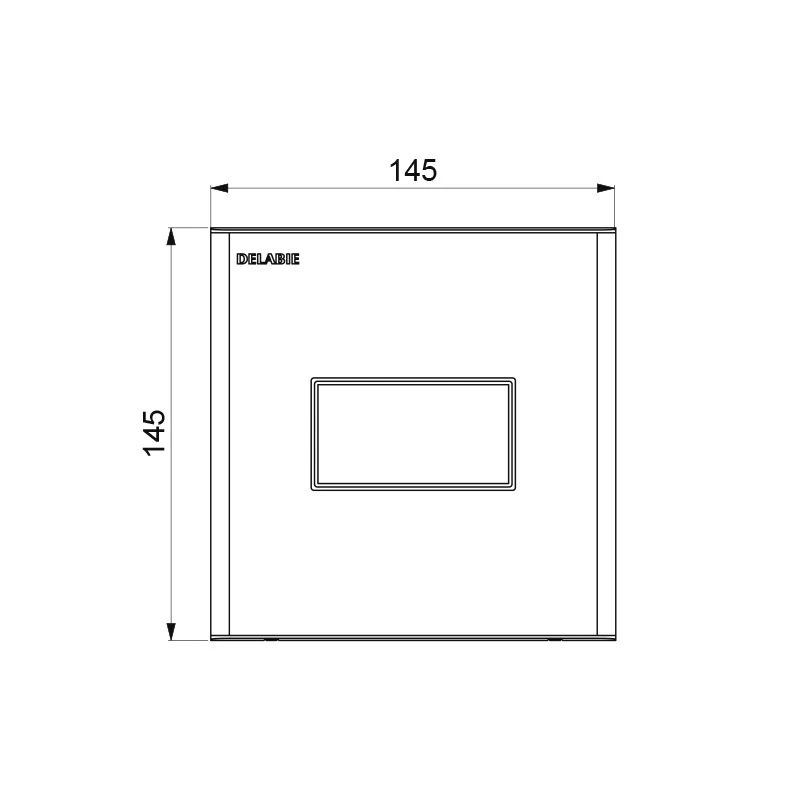

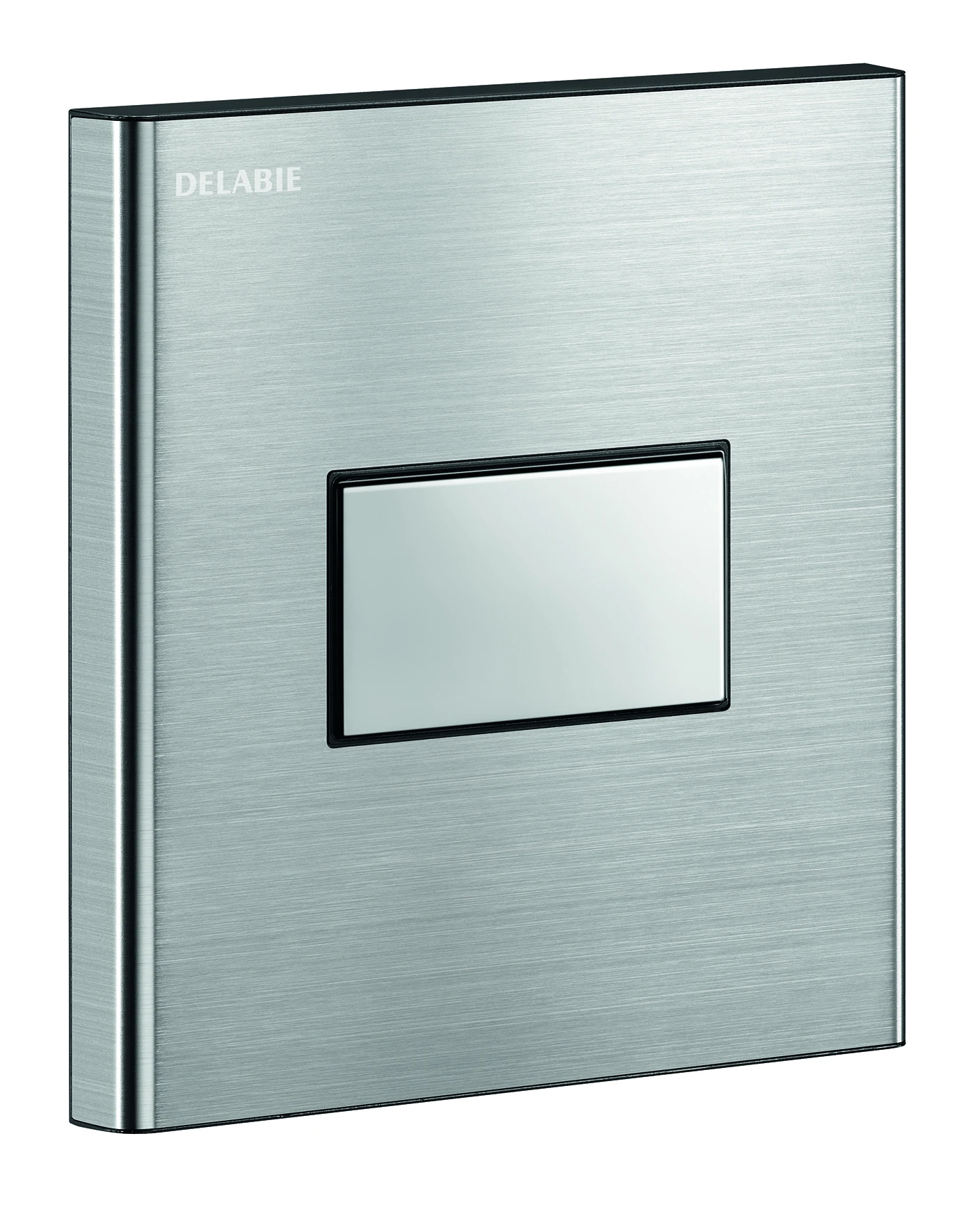

Satin finish stainless steel wall plate 145 x 145mm.

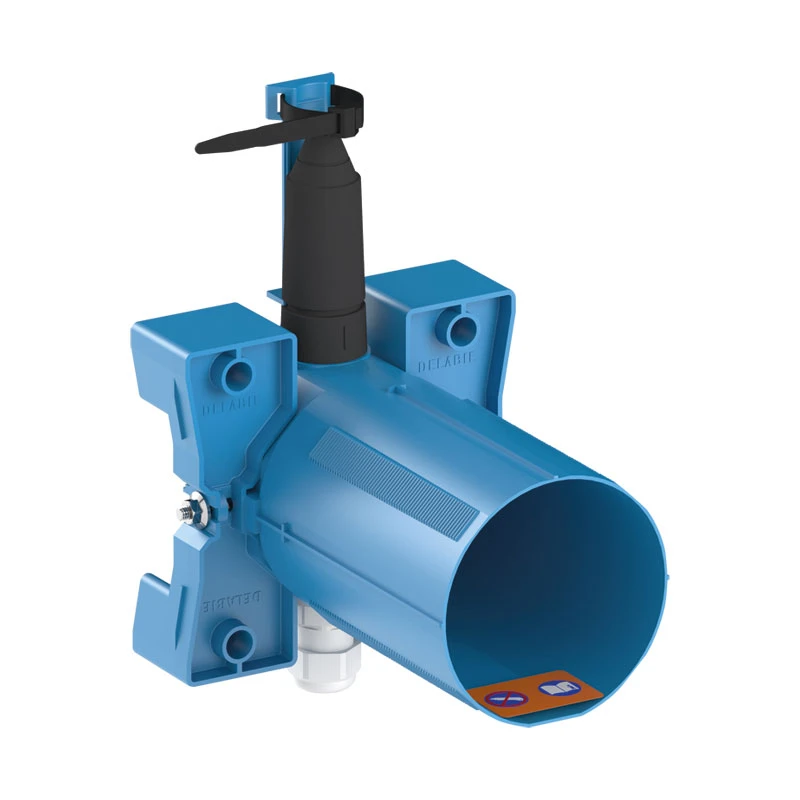

Waterproof recessing housing.
Soft-touch operation.
Time flow pre-set at ~3 seconds, can be adjusted from 3 - 7 seconds (patented).
Flow rate pre-set at 0.15 L/sec. at 3 bar, can be adjusted to 0.3 L/sec.
Connection with ½" brass connection (for urinals supplied by flexible).
Technical characteristics: see TEMPOFLUX urinal ref. 778BOX-778700.

10-year warranty.
