778BOX-778700
Delabie Tempoflux urinal valve with water proof installation box
499,36 €Incl. vat 25.5%
0 Available, Delivery time 7 - 14 d
Tested quality
Get it in 1-5 days
14 days return policy
Description
Waterproof recessed time flow valve for individual urinals

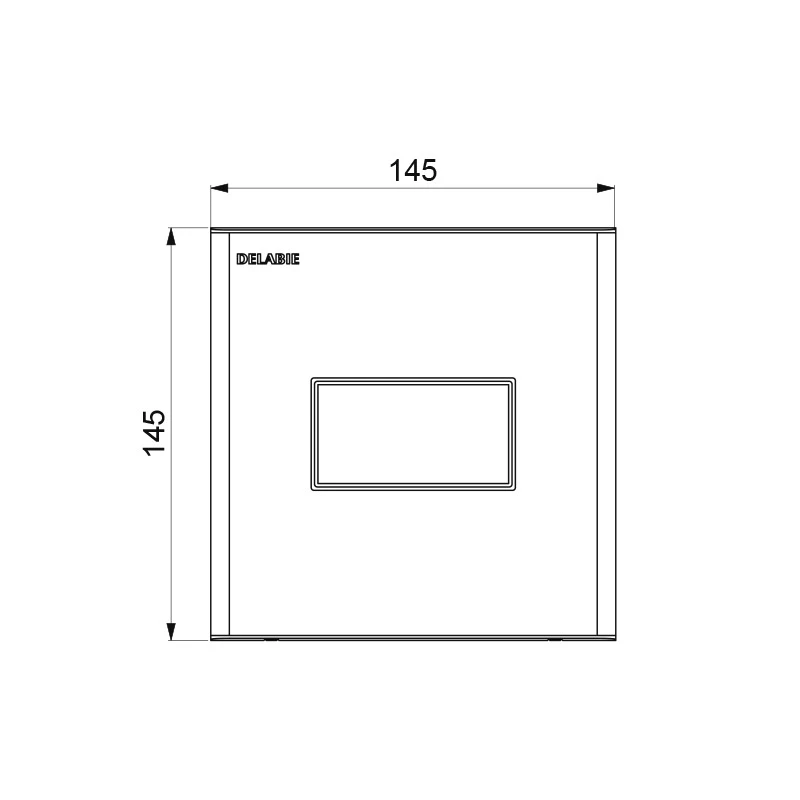

- Satin finish stainless steel wall plate 145 x 145 mm
- Chrome-plated metal push-button
- Waterproof recessing housing
- Collar with waterproof seal
- Hydraulic connection to the outside and maintenance from the front
- Adjusts to all types of installation (rails, solid walls, cards)

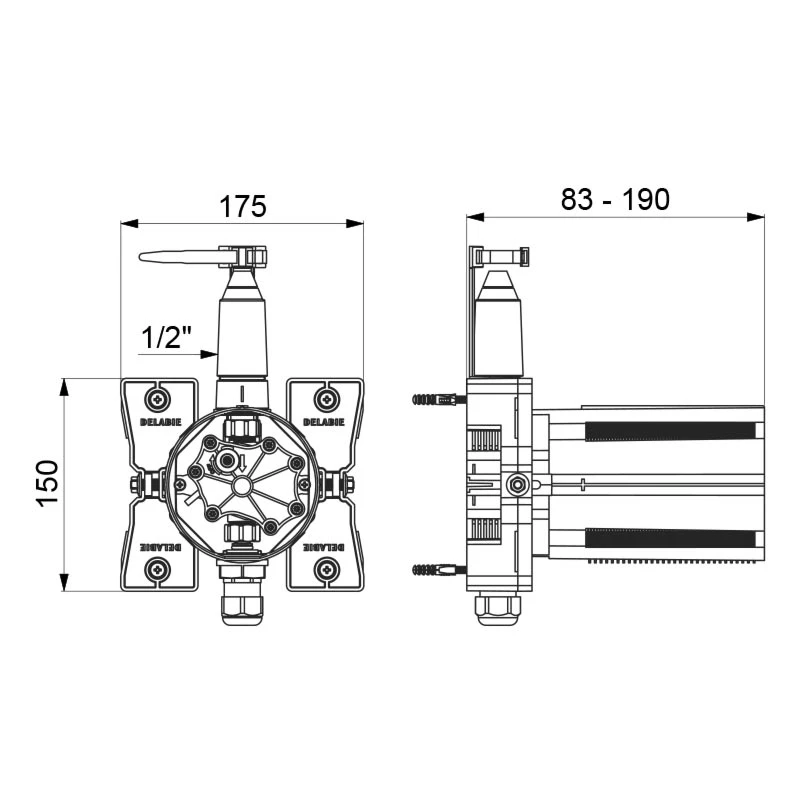

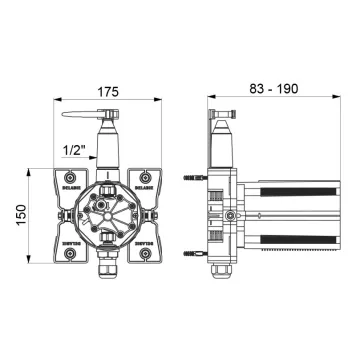

- Compatible with wall finishes from 10 to 120 mm (while maintaining the minimum recessing depth of 83mm)
- Suitable for standard or "pipe-in-pipe" supply
- Stopcock and flow rate adjustment, filter and cartridge all integrated and accessible from the front
- TEMPOFLUX F1/2" flush valve is compatible with sea water and grey water
- Supplied in 2 kits: secure system flush without sensitive elements
- Soft-touch operation
- Time flow pre-set at ~3 seconds, can be adjusted from 3 to 7 seconds (patented)
- Flow rate pre-set at 0.15 l/sec at 3 bar, can be adjusted up to 0.3 l/sec
- Complies with European standard EN 12541 (class II acoustic level)
- Connection with Ø 35 mm connection washer (for standard urinals) or 1/2" brass connection (for urinals supplied by flexible)
- 10-year warranty
and Ref. 778BOX

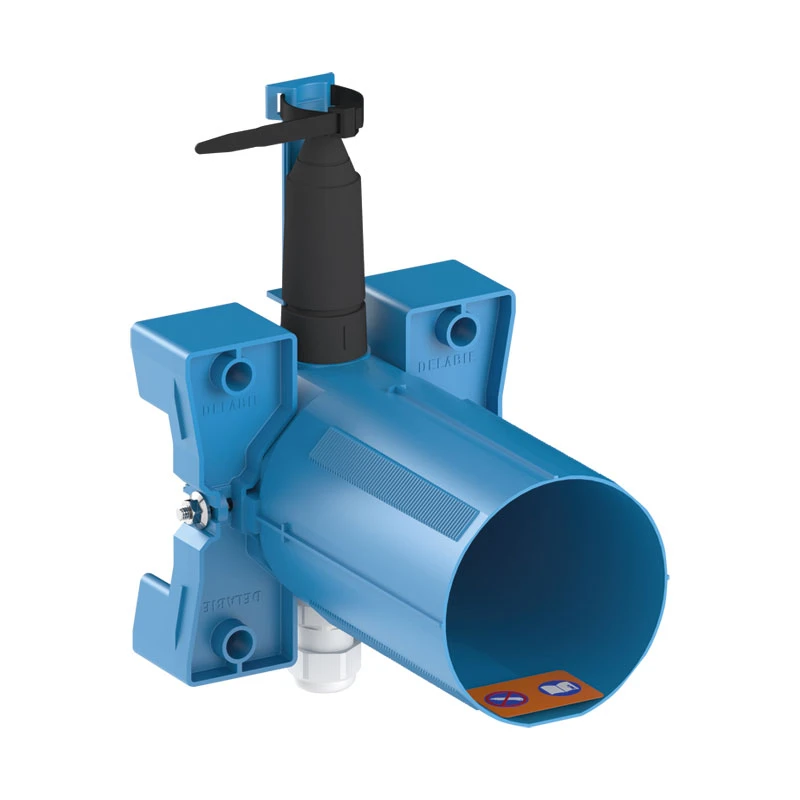

Recessed waterproof housing for urinals ½", kit 1/2:
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 83mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, filter and cartridge all integrated and accessible from the front.
TEMPOFLUX F½" flush valve is compatible with sea water and grey water.
Protected waterproof housing, valve with secure system flush without sensitive elements and connection accessories.
Complies with European standard EN 12541 (class II acoustic level).
Connection with Ø 35mm connection washer (for standard urinals) or ½" brass connection (for urinals supplied by flexible).
For use with neck tube ref. 752430 or 757430.
30-year warranty.
Order with control plate references 778700 or 778707.
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 83mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, filter and cartridge all integrated and accessible from the front.
TEMPOFLUX F½" flush valve is compatible with sea water and grey water.
Protected waterproof housing, valve with secure system flush without sensitive elements and connection accessories.
Complies with European standard EN 12541 (class II acoustic level).
Connection with Ø 35mm connection washer (for standard urinals) or ½" brass connection (for urinals supplied by flexible).
For use with neck tube ref. 752430 or 757430.
30-year warranty.
Order with control plate references 778700 or 778707.
