TEMPOFIX 3 frame system for urinals, 1/2 inch, battery, bright stainless steel

TEMPOFIX 3 frame system for urinals

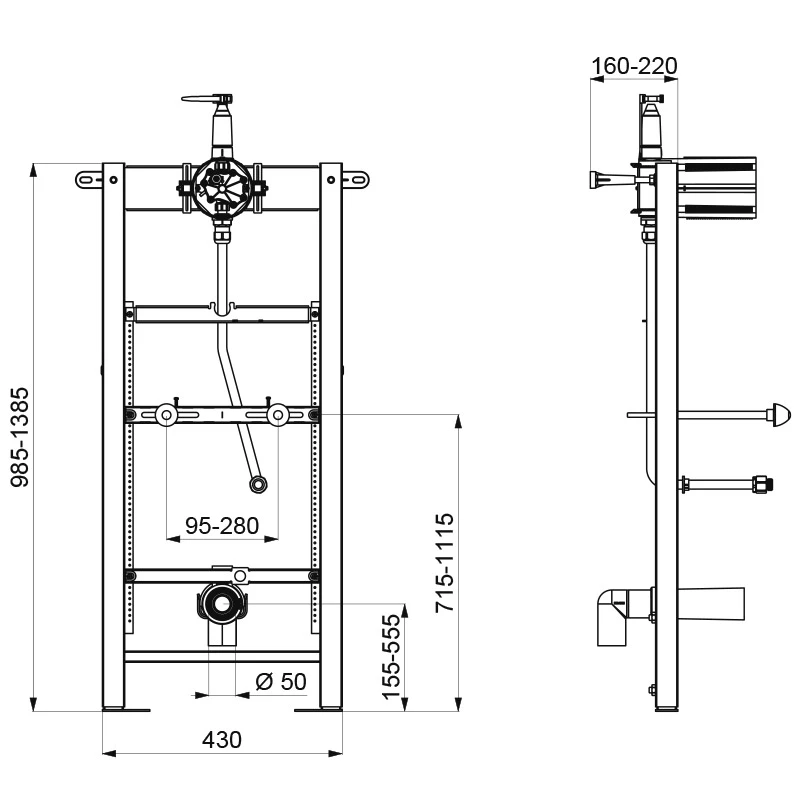

• Frame system W. 430mm for urinals
• Black epoxy coated steel frame for wall-mounted installation.
• Fixes to load-bearing floors and walls with supplied anchoring bolts.
• Adjustable bracket from 100 - 280mm.
• Frame height can be adjusted from 0 to 200mm.
• Ø 50mm soil pipe with waterproof seal.
• Supplied pre-mounted.
• Conforms to standard NF D12-208.
• Compatible with wall finishes 13 - 120mm.
• Fitted with TEMPOMATIC 4 F1/2" direct flush electronic valve
• Operated by 123 6V Lithium battery.

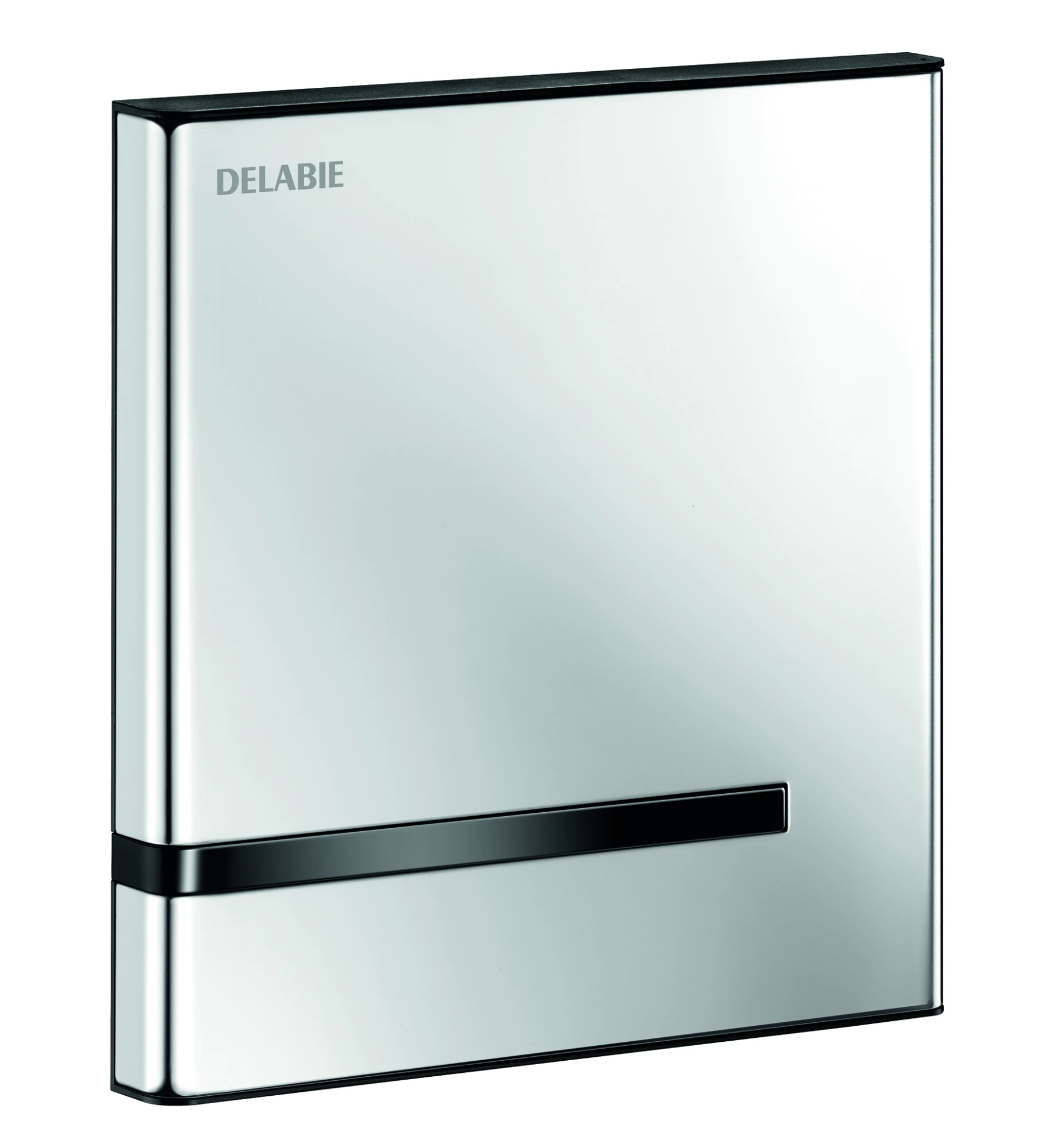

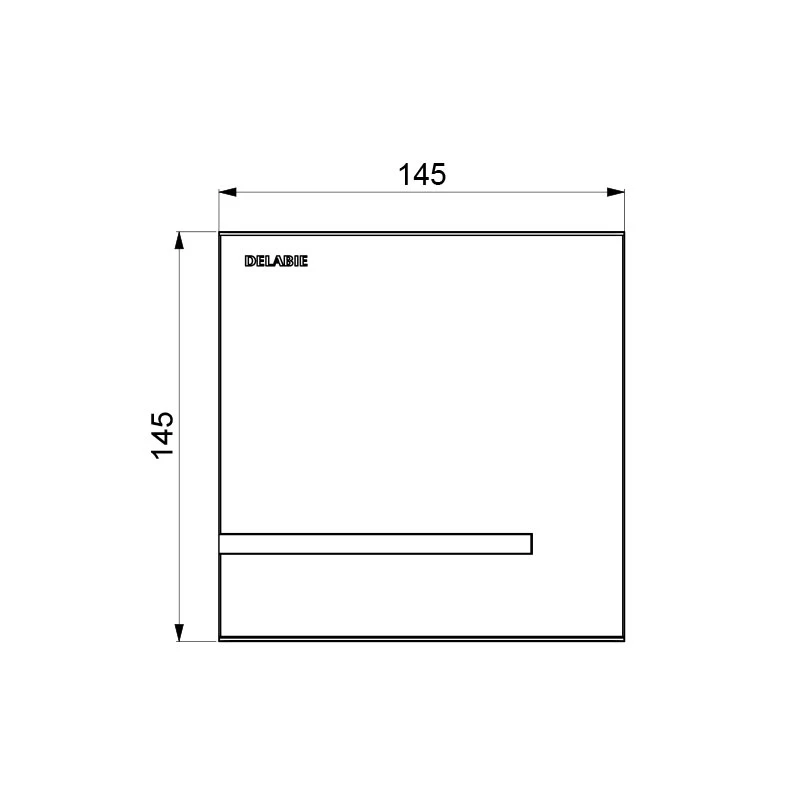

• Bright stainless steel plate 145 x 145mm with embedded electronics.
• Shockproof infrared presence detection sensor.
• Waterproof recessing housing.
• User is taken into account after 10 sec. of presence.
• 3 programmes (rinsing volume can be adjusted according to the type of urinal).
• High frequency mode (exclusive to DELABIE).
• Flow rate pre-set at 0.15 L/sec at 3 bar, can be adjusted.
• Hygienic duty flush every 12 or 24 hours (or Off) after last use: prevents backflow.
• Connection with 1/2" brass connection (for urinal valves with flexible supply).
• Technical features: see TEMPOMATIC urinal ref. 430PBOX-430016.
• 10-year warranty.

Advantages

•  Easy and quick to install: supplied pre-mounted.
•  3 rinsing programmes and high frequency mode.
•  Complete hygiene: no manual contact.
•  Hygienic duty flush.
