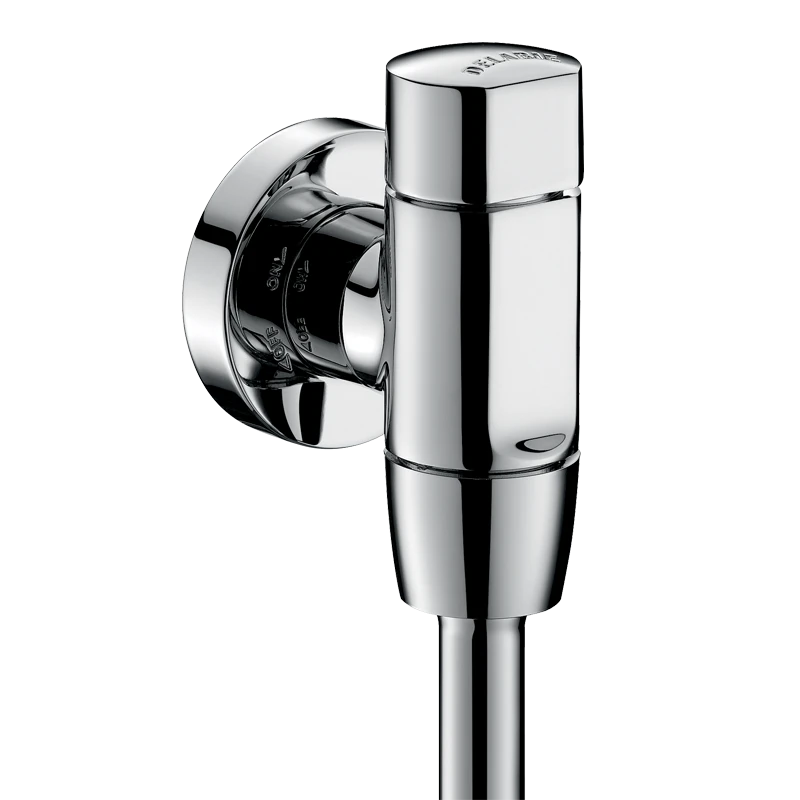

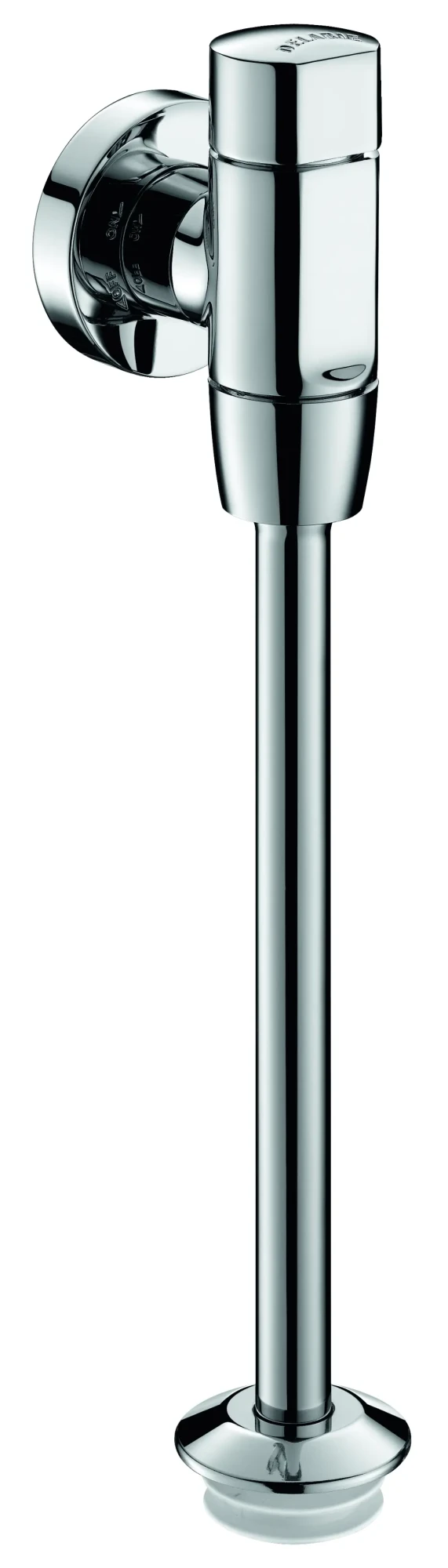

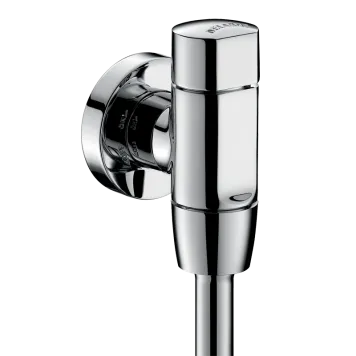

TEMPOFLUX exp. urinal valve kit M1/2" angled 3 sec +stopcock

Recessed time flow urinal valve:
For standard or siphon action urinals.
Recessed installation.
Recessing depth can be adjusted 25 - 45mm.
Stainless steel cover plate 160 x 160mm.
Compatible with rain water.
Time flow ~7 seconds.
Flow rate pre-set at 0.25 L/sec. at 3 bar, can be adjusted.
Chrome-plated brass body F½".
30-year warranty.

This model does not have a waterproof recessing housing. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
