TEMPOMATIC recessed multi urinals M3/4" 230/12V +transformer

TEMPOMATIC multi-urinals urinal valve

• Recessed electronic valve with infrared barrier for urinals
• Rinsing for 1–8 urinals (standard or stall) or 2 siphon action urinals
• Electronic unit with 230/12V transformer
• Hydraulic unit with solenoid valve, stopcock M3/4" and filter
• Hygienic duty flush every 12 hrs after last use, prevents the pipes from drying out
• Presence detection by infrared barrier

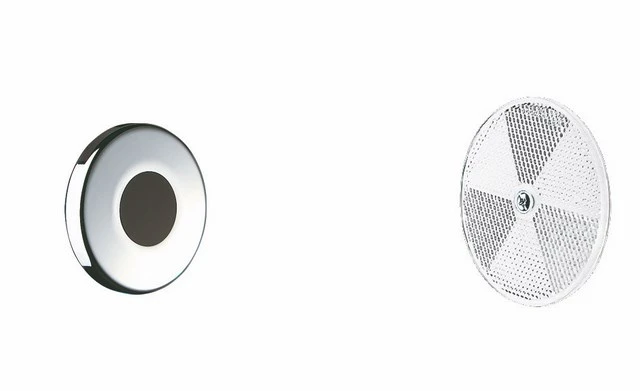

• Recessed infrared detector Ø 50 mm and reflector Ø 85 mm
• Automatic pre-rinse possible after the arrival of the first user
• Automatic rinse every 30 or 60 sec
• Time flow pre-set at 3 sec, can be adjusted from 2 to 14 sec
• Flow rate 0.3 l/sec, can be adjusted
• Maximum detection range recommended: 6 meters
• Anti-blocking safety: automatic shut-off after 20 uninterrupted cycles
• 10-year warranty
